Gauge The Possibilities

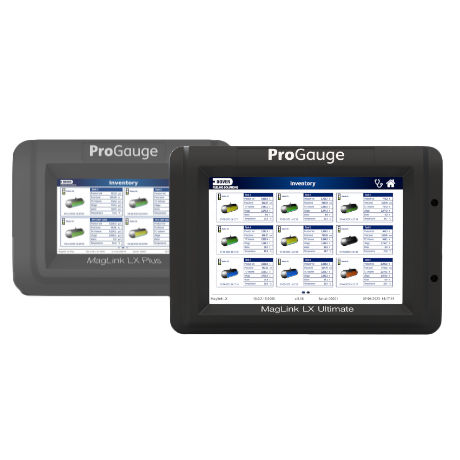

The ProGauge MagLink LX Plus console comes with a brilliant 7” color display with intelligent “touch and swipe” technology. The MagLink LX Plus console joins the well established MagLink LX console family with enhanced scalability, flexibility and connectivity. What are you waiting for? Transform your fuel management and inventory and compliance monitoring capabilities, today!
Never Stops Evolving
We are driven by our pursuit to innovate, simplify, secure, and connect every station owner to their fuel management system. EVO™ 550 and EVO™ 5000 ATGs feature simple setup and operation, remote connectivity, and advanced security features to protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
Highly Capable
Make informed, data-driven inventory management decisions with features like, inventory monitoring, tank testing, containment compliance monitoring, and get expanded leak detection and containment monitoring capabilities.
Simple Interface
A full-color 7” LCD touchscreen serves up one of the most intuitive user interfaces available with simplified user features you won’t find anywhere else.
Never Stops Evolving
We are driven by our pursuit to innovate, simplify, secure, and connect every station owner to their fuel management system. EVO™ 550 and EVO™ 5000 ATGs feature simple setup and operation, remote connectivity, and advanced security features to protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
Highly Capable
Make informed, data-driven inventory management decisions with features like, inventory monitoring, tank testing, containment compliance monitoring, and get expanded leak detection and containment monitoring capabilities.
Simple Interface
A full-color 7” LCD touchscreen serves up one of the most intuitive user interfaces available with simplified user features you won’t find anywhere else.

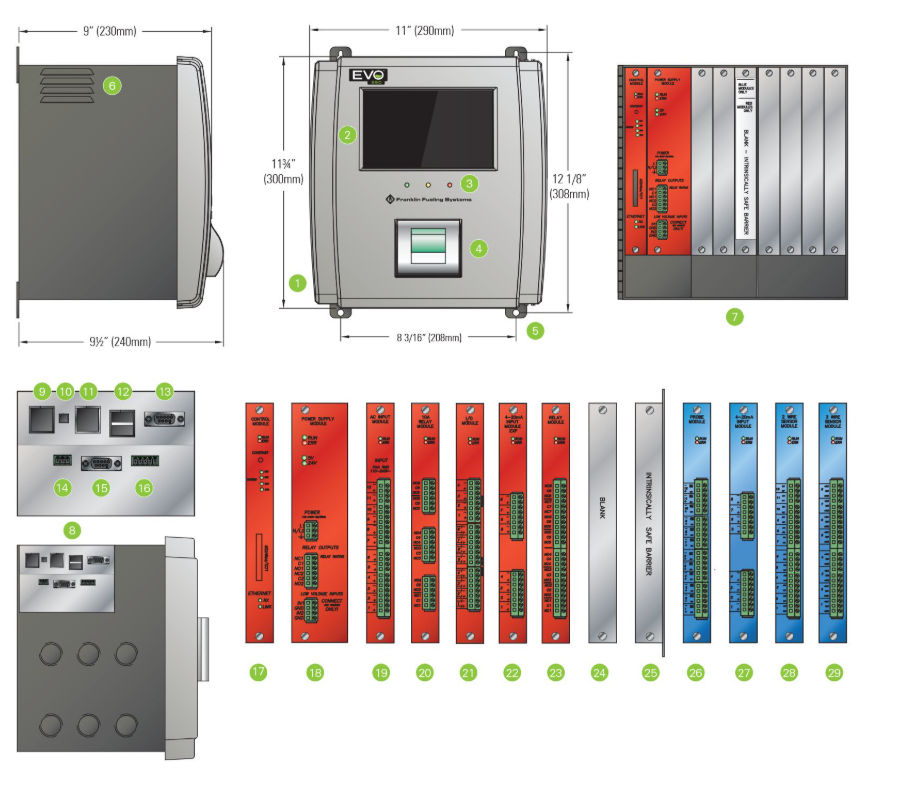

Components
- Cover
- LCD touch screen
- LED indicators
- Printer
- Mounting tabs
- Cooling vents
- Module slots
- Communication ports
- Modem port
- Annunciator (audible alarm)
- Ethernet port
- USB ports (qty 2)
- Serial comm port 1
- Bus extenstion
- Serial comm port 2
- RS-485 comm port
- Controller module
- Power supply module
- AC input module
- 10 Amp relay module
- I/O module
- 4-20mA module EXP
- Relay module
- Blank
- Intrinsically safe barrier
- Probe module
- 4-20mA module
- 2 wire sensor module
- 3 wire sensor module
Specifications
- Maximum tanks monitored: 36 (EVO™ 550) / 36 (EVO™ 5000)
- Maximum sensor input capacity: 48 (EVO™ 550) / 96 (EVO™ 5000)
- Lines capacity: 24 (EVO™ 550) / 24 (EVO™ 5000)
- Dry contact input channels: 2
- AC input channels: 36 (EVO™ 550) / 36 (EVO™ 5000)
- Relay output channels: 24 (EVO™ 550) / 24 (EVO™ 5000)
- Connectivity: Ethernet, RS-485, standard USB (qty 2)
- Display type: 7” (17.78 cm) color LCD touch screen
- Printer type: Thermal (also network or USB)
- Alarm: Internal audible alarm
- LEDs: Alarm, warning, and power
- Applicable liquids: Petroleum, chemicals, and waste
- Level units: Inches, centimeters, and millimeters
- Volume units: gallons or liters (mass with density option)
- Power requirements: 110 to 240 VAC, 50/60 hz, 2.6 Amps
- Operating temperature: 32° to 104 °F (0° to 40 °C)
- Humidity: 0-90% non-condensing
- EVO™ 550: H: 11.75”(300mm), W: 10¼”(260mm), D: 9”(229mm)
- EVO™ 5000: H: 11.75”(300mm), W: 16½”(419mm), D: 9”(229mm)
Capabilities
- High/low product, water, and temperature alarm set points
- Inventory reconciliation / tank auto-calibration / flow rate monitoring
- Density, mass, and phase separation measurement
- Email and SMS notifications
- Back-up generator monitoring / fuel flow control
- Advanced logic control for DEF/AdBlue® recirculation system
- MODBUS™ support
Approvals
- UL, cUL, ATEX, IECEx
- Third party certification of leak detection capabilities.
Never Stops Evolving
We are driven by our pursuit to innovate, simplify, secure, and connect every station owner to their fuel management system. EVO™ 550 and EVO™ 5000 ATGs feature simple setup and operation, remote connectivity, and advanced security features to protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
Highly Capable
Make informed, data-driven inventory management decisions with features like, inventory monitoring, tank testing, containment compliance monitoring, and get expanded leak detection and containment monitoring capabilities.
Simple Interface
A full-color 7” LCD touchscreen serves up one of the most intuitive user interfaces available with simplified user features you won’t find anywhere else.
Never Stops Evolving
We are driven by our pursuit to innovate, simplify, secure, and connect every station owner to their fuel management system. EVO™ 550 and EVO™ 5000 ATGs feature simple setup and operation, remote connectivity, and advanced security features to protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
Highly Capable
Make informed, data-driven inventory management decisions with features like, inventory monitoring, tank testing, containment compliance monitoring, and get expanded leak detection and containment monitoring capabilities.
Simple Interface
A full-color 7” LCD touchscreen serves up one of the most intuitive user interfaces available with simplified user features you won’t find anywhere else.
Components
- Cover
- LCD touch screen
- LED indicators
- Printer
- Mounting tabs
- Cooling vents
- Module slots
- Communication ports
- Modem port
- Annunciator (audible alarm)
- Ethernet port
- USB ports (qty 2)
- Serial comm port 1
- Bus extenstion
- Serial comm port 2
- RS-485 comm port
- Controller module
- Power supply module
- AC input module
- 10 Amp relay module
- I/O module
- 4-20mA module EXP
- Relay module
- Blank
- Intrinsically safe barrier
- Probe module
- 4-20mA module
- 2 wire sensor module
- 3 wire sensor module
Specifications
- Maximum tanks monitored: 36 (EVO™ 550) / 36 (EVO™ 5000)
- Maximum sensor input capacity: 48 (EVO™ 550) / 96 (EVO™ 5000)
- Lines capacity: 24 (EVO™ 550) / 24 (EVO™ 5000)
- Dry contact input channels: 2
- AC input channels: 36 (EVO™ 550) / 36 (EVO™ 5000)
- Relay output channels: 24 (EVO™ 550) / 24 (EVO™ 5000)
- Connectivity: Ethernet, RS-485, standard USB (qty 2)
- Display type: 7” (17.78 cm) color LCD touch screen
- Printer type: Thermal (also network or USB)
- Alarm: Internal audible alarm
- LEDs: Alarm, warning, and power
- Applicable liquids: Petroleum, chemicals, and waste
- Level units: Inches, centimeters, and millimeters
- Volume units: gallons or liters (mass with density option)
- Power requirements: 110 to 240 VAC, 50/60 hz, 2.6 Amps
- Operating temperature: 32° to 104 °F (0° to 40 °C)
- Humidity: 0-90% non-condensing
- EVO™ 550: H: 11.75”(300mm), W: 10¼”(260mm), D: 9”(229mm)
- EVO™ 5000: H: 11.75”(300mm), W: 16½”(419mm), D: 9”(229mm)
Capabilities
- High/low product, water, and temperature alarm set points
- Inventory reconciliation / tank auto-calibration / flow rate monitoring
- Density, mass, and phase separation measurement
- Email and SMS notifications
- Back-up generator monitoring / fuel flow control
- Advanced logic control for DEF/AdBlue® recirculation system
- MODBUS™ support
Approvals
- UL, cUL, ATEX, IECEx
- Third party certification of leak detection capabilities.
