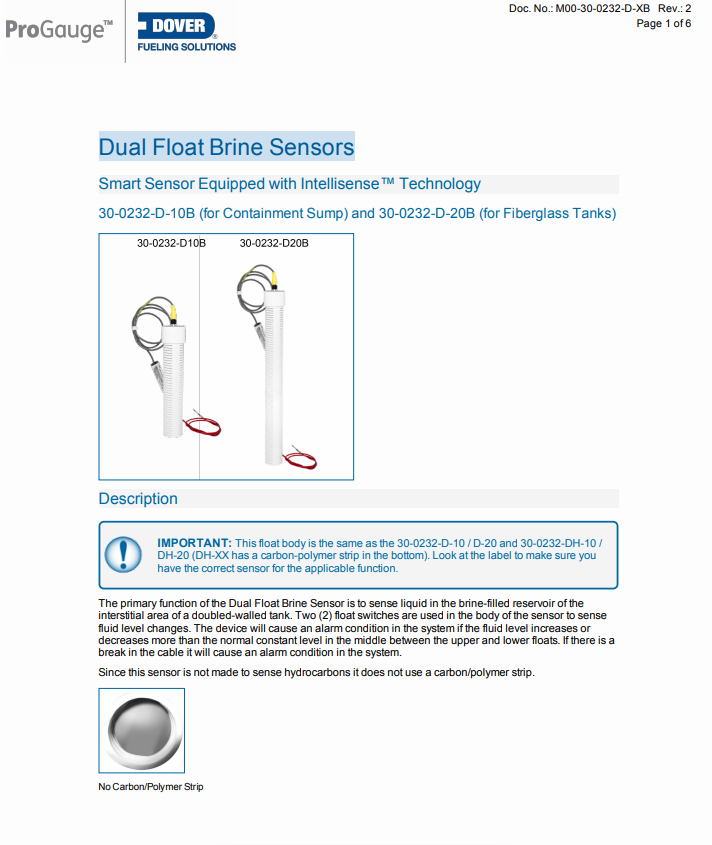

Non-Discriminating Dual-Float Brine Sensor

Non-Discriminating Dual-Float Brine Sensor monitors the level of brine solution in a dispenser sump or fiberglass tank. The bottom float of the brine sensor will remain floating under normal conditions. If the bottom float drops, it will trigger a low liquid alarm; if the brine sensor’s top float begins floating, it will trigger a high liquid alarm. Sensor will also alarm if the cable to the sensor breaks or if the sensor malfunctions.

All DFS sensors are designed to be multi-dropped during installation, eliminating the need for a dedicated wiring home-run for each sensor. Built with our proprietary IntelliSense technology, sensors will automatically self-identify with serial number and model number, making installation simple.

Part Numbers:

- FM30-0232-D-10B (Dispenser Sump)

- FM30-0232-D-20B (Fiberglass Tank)

Application: Measures brine solution in dispenser sumps and fiberglass tanks

Detects: Low liquid, high liquid

Operating Temp: -40°F to 158°F (-40°C to +70°C)
