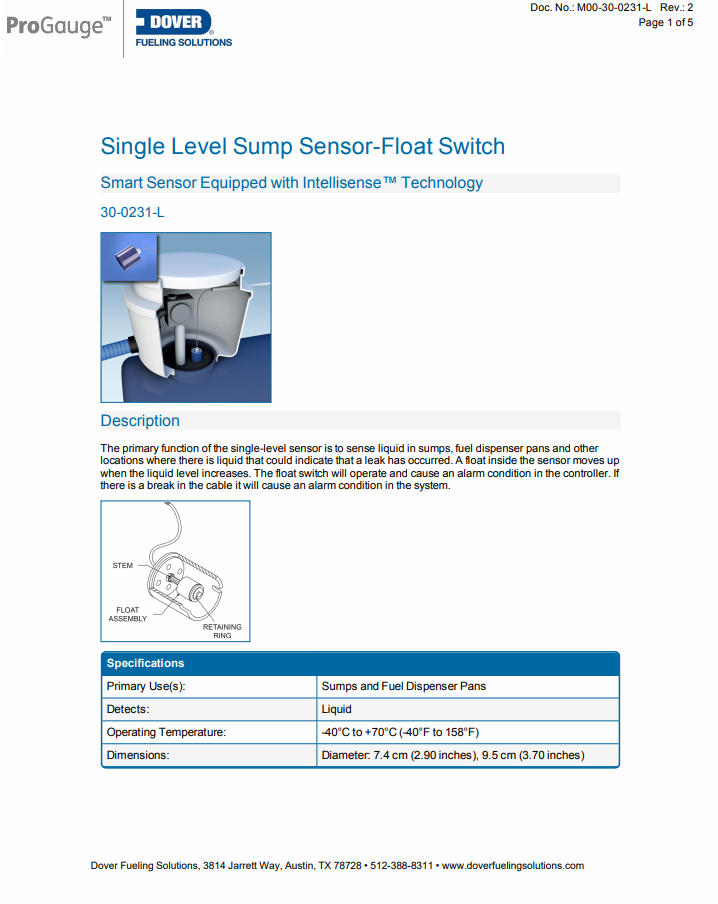

Single Level Sump Sensor – Float Switch - Large

Simple and reliable float switch sensor, designed to detect and alarm with the presence of fluid in a containment sump/pan. Sensor will also alarm if the cable to the sensor breaks or if the sensor malfunctions.

All DFS sensors are designed to be multi-dropped during installation, eliminating the need for a dedicated wiring home-run for each sensor. Built with our proprietary IntelliSense technology, sensors will automatically self-identify with serial number and model number, making installation simple.

Part Number: FM30-0231-L

Operating Principle: Float Switch

Common Applications: Dispenser pans, STP sumps, Transition sumps

Product Detection: Min. height 1.50 in (3.81 cm)

Operating Temp: -40°F to 150°F (-40°C to 65°C)
