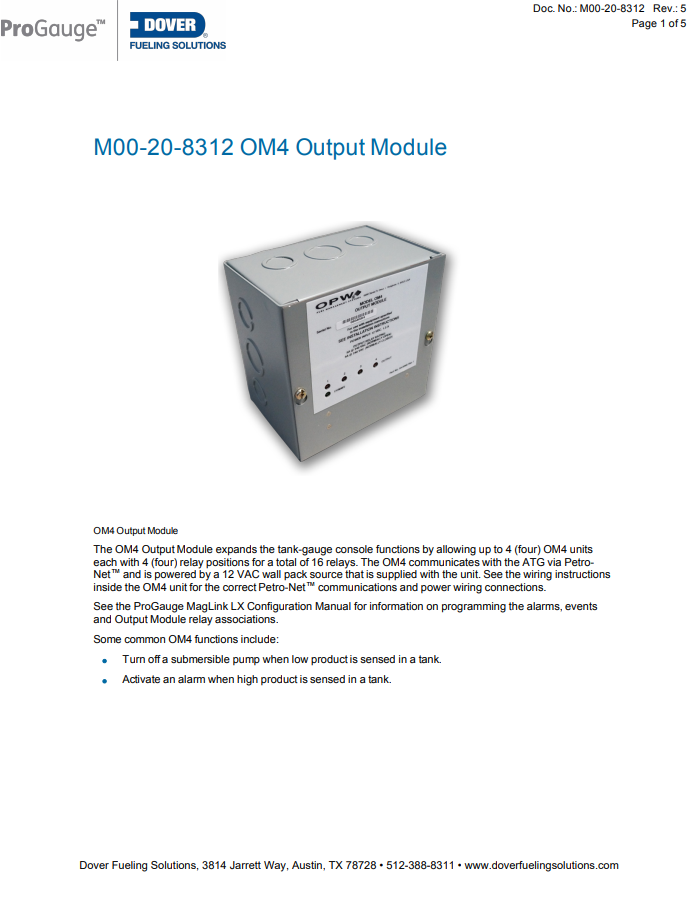

OM4 Relay Expansion Module

The OM4 Output Module expands the MagLink LX Plus and Ultimate consoles functions by adding 4 (four) relay positions. The OM4 communicates with the console via Petro-Net™ and is powered by a 12 VAC wall pack source that is supplied with the unit.

Some common OM4 functions include:

• Turn off a submersible pump when low product is sensed in a tank.
• Activate an alarm when high product is sensed in a tank.

OM4 Technical Specifications

• Field Wiring Rating: 105°C, 600V Type RH. TW, RFH-2 or equivalent
• Power Requirements: 12 VAC, 0.5A Max.
• Dimensions (W x H x D): 15 cm x 15 cm x 10 cm (6” x 6” x 4”)
• Temperature Rating: 0°C – 40°C (32°F – 104°F)
• Relay Output Rating: 5A @ 240 VAC; 5A @ 24 VDC)
