Innovative. Compact. Cost-effective.

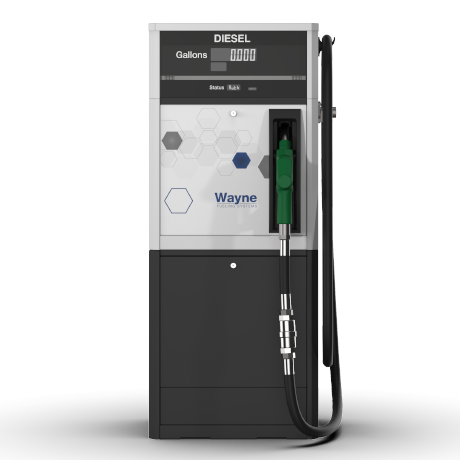

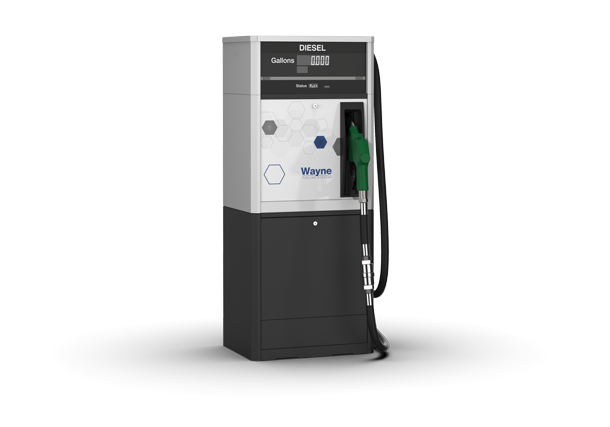

The Wayne Select™ S1 compact electronic fuel dispenser is available with volume only or price displays. A variety of single-sided, lane-oriented nozzle models include: enhanced-capacity standard petroleum; super-high-capacity standard petroleum; enhanced-capacity E85; and warm-climate diesel exhaust fluid (DEF). The compact size of the DEF models make them a perfect fit for installation inside DEF tank enclosures or maintenance garages, which extends their applicability to all regions regardless of temperature. A dual-sided display, island-oriented nozzle warm-climate DEF model is also available. When coupled with the pedestal option, it provides an economical DEF dispensing solution for standard fueling islands in warm climates.
Just the Right Height Usability
The compact design of the Wayne Select™ S1 electronic fuel dispenser allows mounting the dispenser at just the right height to maximize user convenience and meet American Disabilities Act (ADA) requirements. A factory shelf kit provides an economical mounting option, or choose pedestal-mounting kits for mount-anywhere flexibility. A pedestal containment option provides a polyethylene containment pan inside the pedestal for above ground storage tank applications. A front-facing nozzle boot further enhances user-convenience.
Fleet or Retail Flexibility
All Wayne Select™ S1 electronic fuel dispenser models can be customized for private fleet or retail applications. Fleet configurations include large gallons or liters displays and a status display to provide user operating messages. Retail configurations include total sale, gallons or liters, and unit price displays for the resale of fuel. All configurations also include a separate display for warnings and diagnostic information. The standard serial communications, or an option pulse output interface, allow connection to popular fleet fuel control or Point of Sale (POS) systems. A modular design allows in-dispenser payment terminal options to provide the same secure EMV-compliant payment convenience as full-size premium retail dispensers.
Special DEF & E85 Compatibility
Special configurations are available for Diesel Exhaust Fluid (DEF) and E85 applications which require special components for compatibility with these corrosive fluids. DEF models provide an economical solution for dispensing DEF in both aboveground and underground storage tank applications in environments that do not fall below 12°F. OEMs can mount Wayne Select™ S1 compact electronic DEF dispensers in heated tank enclosures for cold environments. E85 models include special meters and components for ethanol compatibility, but also work with standard petroleum fuels as well. You can deliver traditional fuels today with the flexibility to switch to E85 at any time.
