Ultimate Interaction. Ultimate Possibilities.

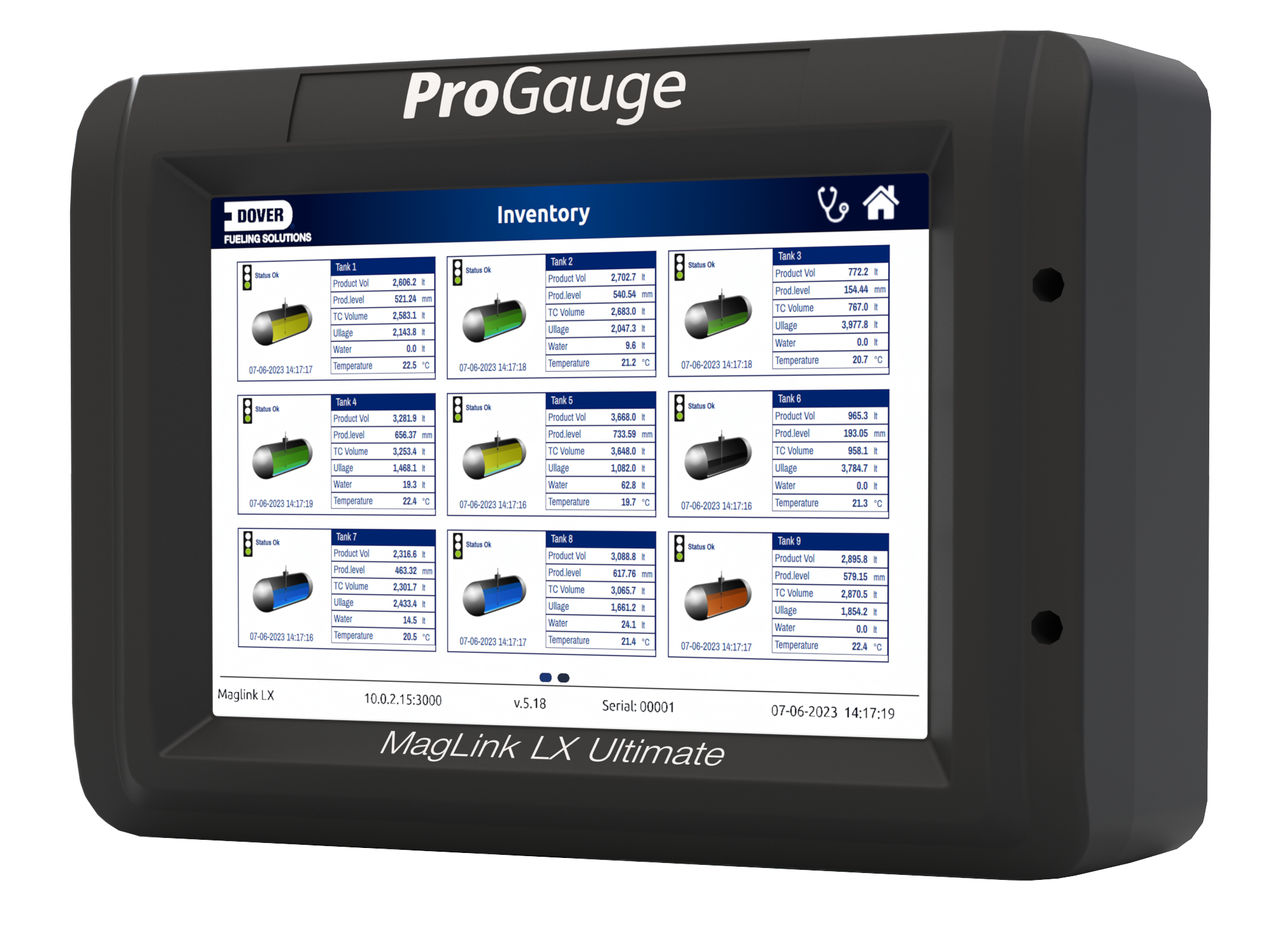

Introducing the ProGauge MagLink LX Ultimate console: our most capable and scalable console, harnessing a 12” color display with intelligent “touch and swipe” navigation technology. The MagLink LX Ultimate is capable of supporting up to 48 probes, 480 sensors, and 16 PLLD sensors. Tank testing and line testing are included to ensure your site is ready for anything.

Contact DFS today to find out how you can upgrade your entire tank monitoring system with brand new hardware, for the same price as replacing an unsupported competitor console today.

Contact Us View Brochure

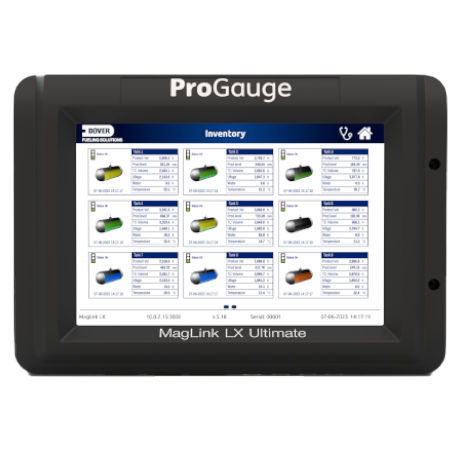

ProGauge MagLink Ultimate console - Front

Flexible: Compatible with new or legacy equipment, works with wired or wireless probes, and can be expanded to include Continuous Statistical Leak Detection (CSLD) or Electronic Pressurized Leak Detection (PLLD) when needed.

Scalable: Base monitoring capabilities support up to 12 probes and 48 sensors, for virtually any underground or above-ground storage tank, accessible through a compact display that presents all the real-time data you need.

Fast-to-Install: Connect quickly to intelligent sensors that identify themselves, configure easily with laptop configuration abilities, and run less cabling leveraging multi-drop installation technology.

Easy-to-Use: Find what you need faster with a 7" full color touch-and-swipe screen, staged securely to prevent onsite tampering, and accessible from anywhere through a secure online portal offering remote visibility.

Certifications: UL, cUL, NWGLDE

Approvals: Third-party certification of leak detection capabilities

Dimensions: Display - 155 x 88mm

Dimensions: Console - 400mm W x 280mm H x 120mm D

Connectivity: Ethernet, RS-485, RS-232, standard USB

Maximum Probes Monitored: 12

Maximum Sensors Monitored: 48

Relay Specifications: Rated Load - 0.5A at 125 VAC; 2A at 30VDC

Relay Specifications: Rated Carry Current - 2 A

Relay Specifications: Max Switching Voltage - 250 VAC, 22 VDC

Relay Specifications: Max Switching Current -2 A

Compatible Devices: DMP 1-wire probes, 924B probes, Smart sensors

Ports and Connections:

Brochures and Manuals

ProGauge MagLink LX Ultimate Brochure

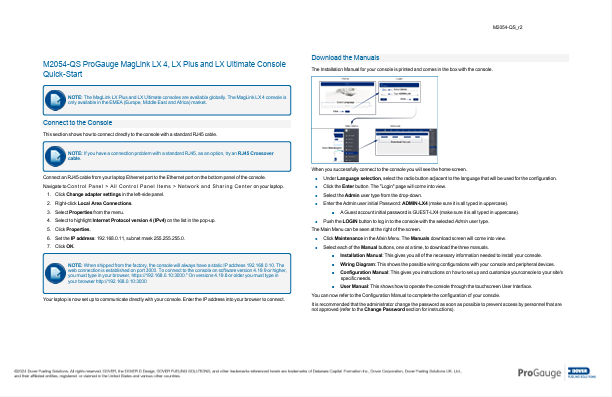

Software and Firmware Downloads

ProGauge MagLink LX Plus PLLD Brochure

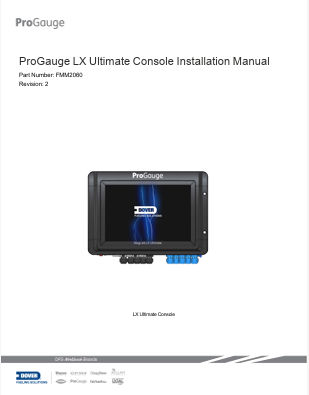

Installation Manual

Highlights

Flexible: Compatible with new or legacy equipment, works with wired or wireless probes, and can be expanded to include Continuous Statistical Leak Detection (CSLD) or Electronic Pressurized Leak Detection (PLLD) when needed.

Scalable: Base monitoring capabilities support up to 12 probes and 48 sensors, for virtually any underground or above-ground storage tank, accessible through a compact display that presents all the real-time data you need.

Fast-to-Install: Connect quickly to intelligent sensors that identify themselves, configure easily with laptop configuration abilities, and run less cabling leveraging multi-drop installation technology.

Easy-to-Use: Find what you need faster with a 7" full color touch-and-swipe screen, staged securely to prevent onsite tampering, and accessible from anywhere through a secure online portal offering remote visibility.

Specifications
