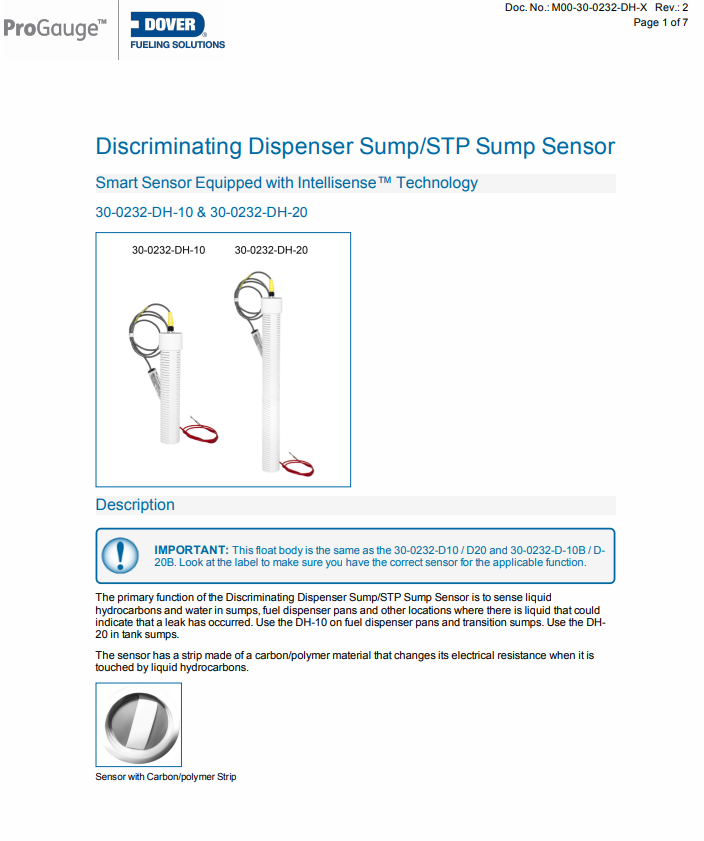

Discriminating Sump Sensor

Discriminating Dispenser Pan / STP Sump Sensor provides the ability to detect a low and high liquid level and distinguish whether the fluid is water or hydrocarbons. Detection of fuel or water will result in an alarm condition at the console. Detection of a fuel or high-water condition is useful to disable STP / dispenser power to ensure protection of the environment. Sensor will also alarm if the cable to the sensor breaks or if the sensor malfunctions.

All DFS sensors are designed to be multi-dropped during installation, eliminating the need for a dedicated wiring home-run for each sensor. Built with our proprietary IntelliSense technology, sensors will automatically self-identify with serial number and model number, making installation simple.

Part Number:

• FM30-0232-DH-10 (Dispenser Pan)
• FM30-0232-DH-20 (STP Sump)

Detects:Fuel, water – high and low level

Differentiates: Fuel vs. Water

Common Applications: Dispenser Pans, STP Sumps

Product Detection:1.25 in (3.17 cm) fuel only - 1.25 in (3.17 cm) fuel on water

Operating Temp:-40°F to 150°F (-40°C to 65°C)
