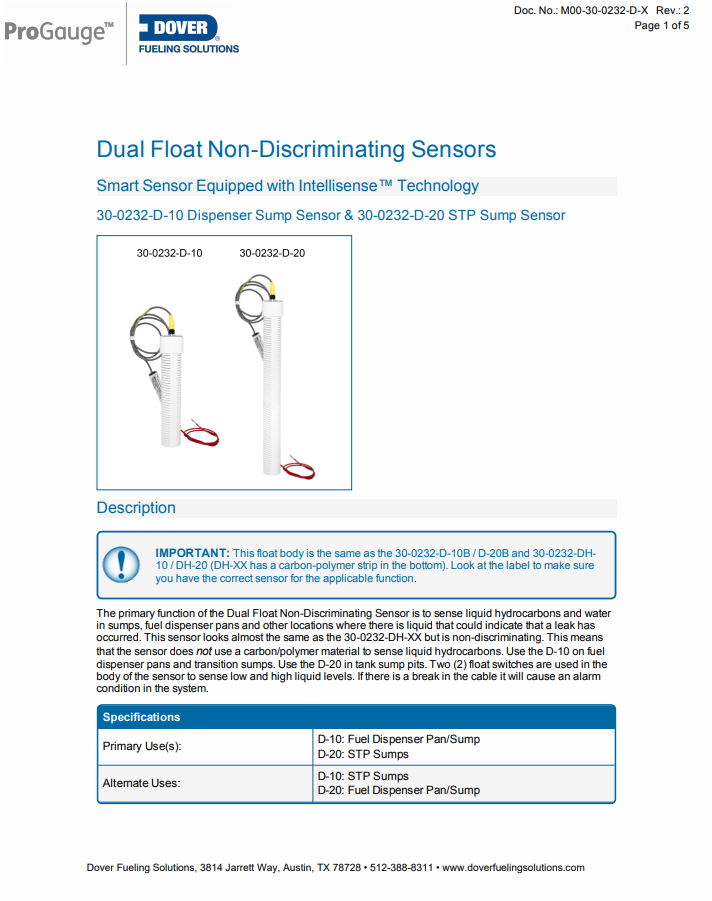

Non-Discriminating Dual-Float Sump Sensor

Non-Discriminating Dual-Float Sump Sensor detects liquids in dispenser pans, STP sumps, and other locations where their very presence could indicate a leak has occurred. The sensor contains two float switches giving the ability to product a high alarm and high, high liquid alarm. Sensor will also alarm if the cable to the sensor breaks or if the sensor malfunctions.

All DFS sensors are designed to be multi-dropped during installation, eliminating the need for a dedicated wiring home-run for each sensor. Built with our proprietary IntelliSense technology, sensors will automatically self-identify with serial number and model number, making installation simple.

Part Numbers:

- FM30-0232-D-10 (Dispenser Sump)

- FM30-0232-D-20 (STP Sump)

Common Applications: Dispenser pans, STP sumps, Transition sumpsDetects: Liquid

Detects: High liquid

Operating Temp: -40°F to 158°F (-40°C to +70°C)
