Flexible, Scalable, Efficient.

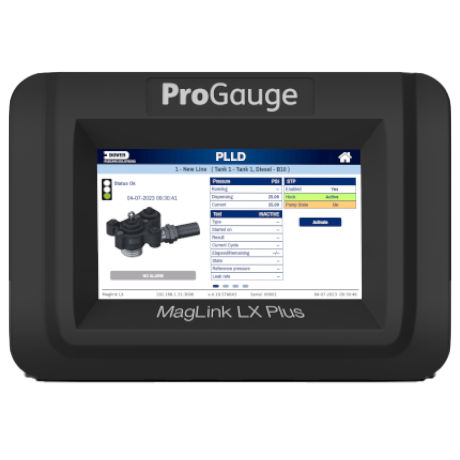

The ProGauge MagLink LX Plus console is a compact and cost-effective tank gauging option, capable of supporting up to 12 probes and 48 sensors, with the option to add PLLD and CSLD when needed. The 7" color touch-and-swipe display makes daily use easier. The power of the platform produces results faster.
Flexible: The MagLink LX Plus Console is compatible with new or legacy equipment, works with wired or wireless probes, and measures virtually any underground or above-ground storage tank.
Scalable: Base monitoring capabilities support up to 12 probes and 48 sensors, and can be expanded to include Continuous Statistical Leak Detection (CSLD) or Electronic Pressurized Leak Detection (PLLD) when needed.
Fast-to-Install: Connect quickly to intelligent sensors that identify themselves, configure easily with laptop configuration abilities, and run less cabling leveraging multi-drop installation technology.

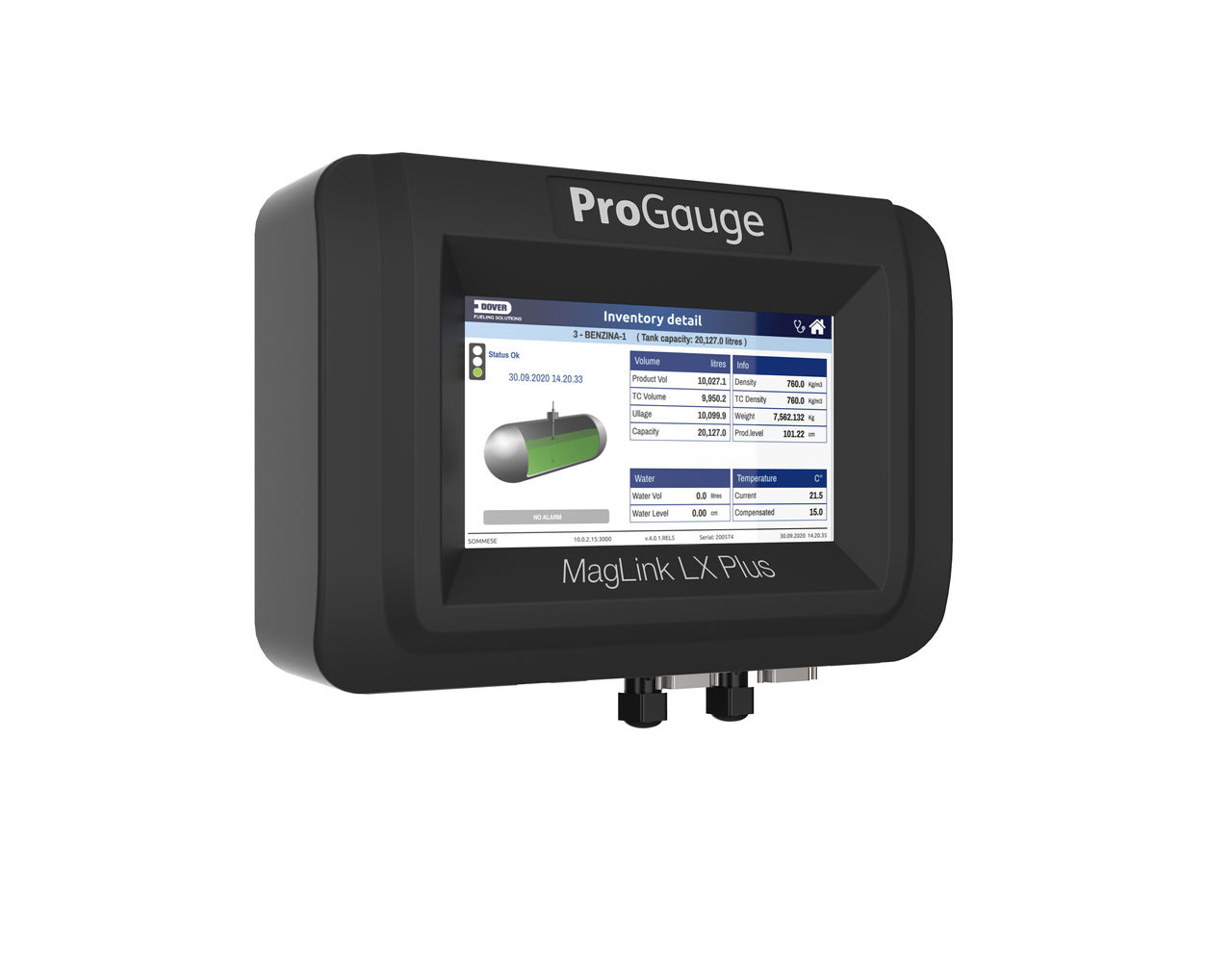

Easy-to-Use: Find what you need faster with a 7" full color touch-and-swipe screen, secure from onsite tampering, but accessible for remote visibility through a secure online portal.
Certifications: UL, cUL, NWGLDE
Approvals: Third-party certification of leak detection capabilities
Dimensions: Display - 155 x 88mm
Dimensions: Console - 267mm W x 215mm H x 80mm D
Connectivity: Ethernet, RS-485, RS-232, standard USB
Maximum Probes Monitored: 48
Maximum Sensors Monitored: 480
Maximum PLLD Monitored: 16
Relay Specifications: Rated Load - 0.5A at 125 VAC; 2A at 30VDC
Relay Specifications: Rated Carry Current - 2 A
Relay Specifications: Max Switching Voltage - 250 VAC, 22 VDC
Relay Specifications: Max Switching Current -2 A
Compatible Devices: DMP 1-wire probes, 924B probes, Smart sensors

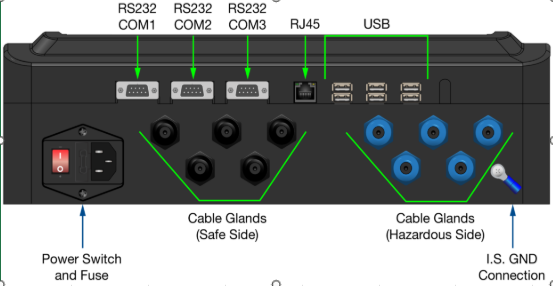

Ports and Connections:
-319x319.png.thumb.1280.1280.png.rendition.src.1761555312495.png)

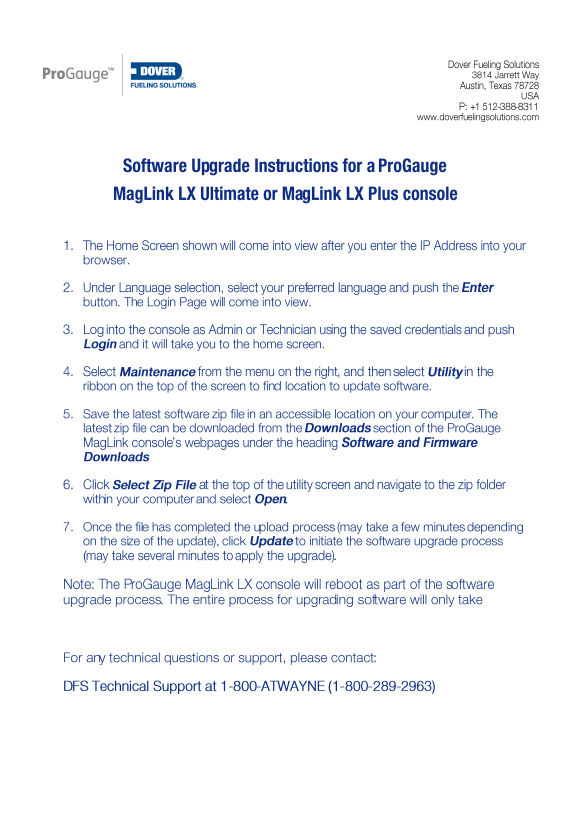

Software and Firmware Downloads
Flexible: The MagLink LX Plus Console is compatible with new or legacy equipment, works with wired or wireless probes, and measures virtually any underground or above-ground storage tank.
Scalable: Base monitoring capabilities support up to 12 probes and 48 sensors, and can be expanded to include Continuous Statistical Leak Detection (CSLD) or Electronic Pressurized Leak Detection (PLLD) when needed.
Fast-to-Install: Connect quickly to intelligent sensors that identify themselves, configure easily with laptop configuration abilities, and run less cabling leveraging multi-drop installation technology.
Easy-to-Use: Find what you need faster with a 7" full color touch-and-swipe screen, secure from onsite tampering, but accessible for remote visibility through a secure online portal.
Certifications: UL, cUL, NWGLDE
Approvals: Third-party certification of leak detection capabilities
Dimensions: Display - 155 x 88mm
Dimensions: Console - 267mm W x 215mm H x 80mm D
Connectivity: Ethernet, RS-485, RS-232, standard USB
Maximum Probes Monitored: 48
Maximum Sensors Monitored: 480
Maximum PLLD Monitored: 16
Relay Specifications: Rated Load - 0.5A at 125 VAC; 2A at 30VDC
Relay Specifications: Rated Carry Current - 2 A
Relay Specifications: Max Switching Voltage - 250 VAC, 22 VDC
Relay Specifications: Max Switching Current -2 A
Compatible Devices: DMP 1-wire probes, 924B probes, Smart sensors
Ports and Connections:
